Acetylene Valve CGA510 1″ NGT – Sherwood
$34.80

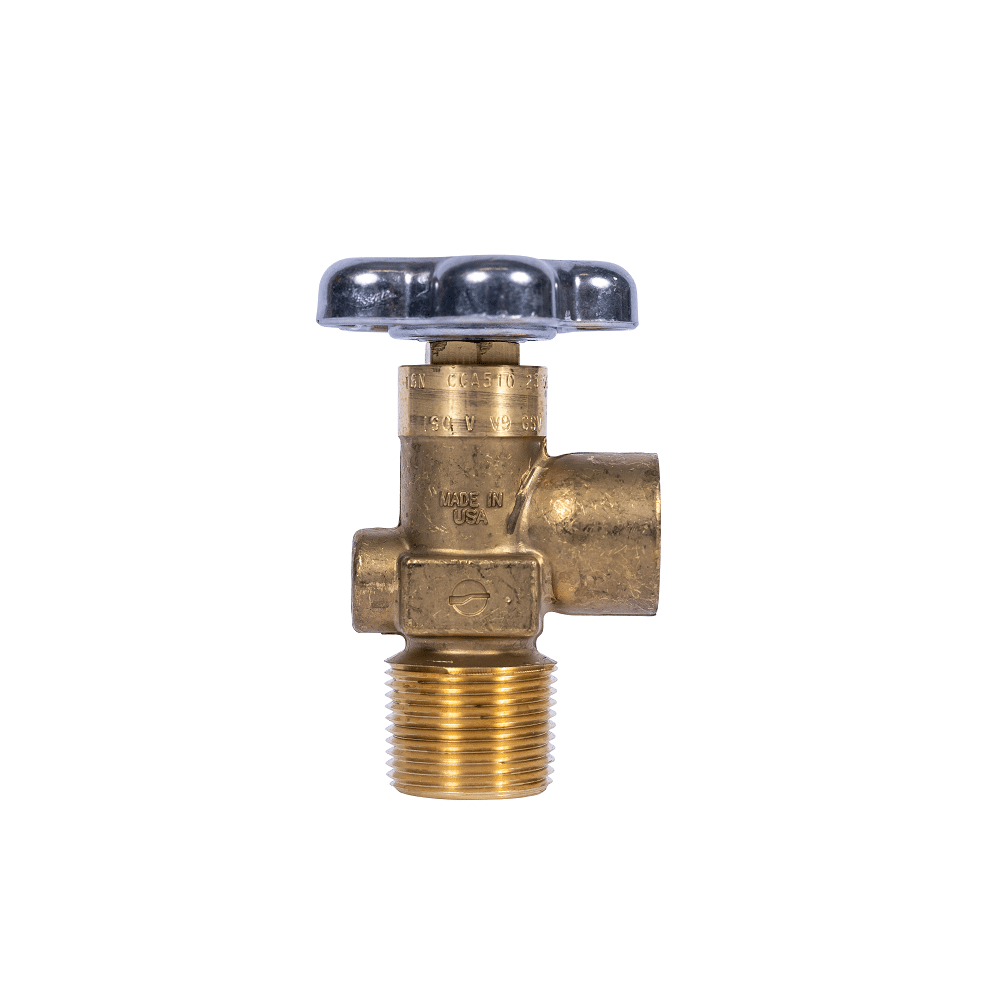

Wishlist Please, enable Wishlist.Sherwood CGA 510 Acetylene Valve 1″ NGT Handwheel Operated, No PRD
This CGA 510 acetylene valve is built for reliable performance in industrial applications. Designed specifically for acetylene service, it features a CGA 510 outlet and a 1″ NGT inlet for secure connection. Sherwood’s CGA 510 Acetylene Valve with handwheel has a durable body, O-ring, and soft seat design.
Premium Construction
- Automated assembly and testing processes ensure exceptional quality
- 100% helium leak tested
- Heavy-duty forged brass body for durability and high pressure
- Precisely machined internal components meet the most stringent international valve performance standards
- Easy-to-read valve markings roll stamped on outlet neck
- Soft seat design provides positive shut-off
Valve Features
- Gas Service: Acetylene
- CGA510 outlet
- Inlet Thread Size: 1″ NGT
- Outlet Thread Size: .885″-14 NGO LH Int. (POL)
- Maximum Working Pressure: 500 PSI
- Burst Pressure: 13,184 PSI
- Operating Temperature Range: -50° F to +149° F
- Storage Temperature Range: -65° F to +155° F
- Leak Rate Internal/External: 1×10-3 atm cc/sec.
- Cv Flow Factor: Standard: .690
- Minimum Cycle Life: 2000 Cycles
- Closing Torque: 20–30 in.-lbs.
- Operating Torque: 10–20 in.-lbs.
- Bonnet Installation Torque: 50–60 ft.-lbs.
- Handwheel Nut Installation Torque: 25-45 in. – lbs.
Must be installed by a qualified cylinder technician due to torque specifications. Compressed gas cylinders and valves may be dangerous, please use caution and put safety first.
Have questions? Email us at [email protected].
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 5 × 6 in |
| Condition | New |
| Material | Brass |
| Gas Type | Acetylene |
| Service Pressure | 500 PSI / 34 Bar |
| Inlet Size | 1" NGT |
| Outlet Size | .885" -14 NGO LH Int |
| Brand | Sherwood |
