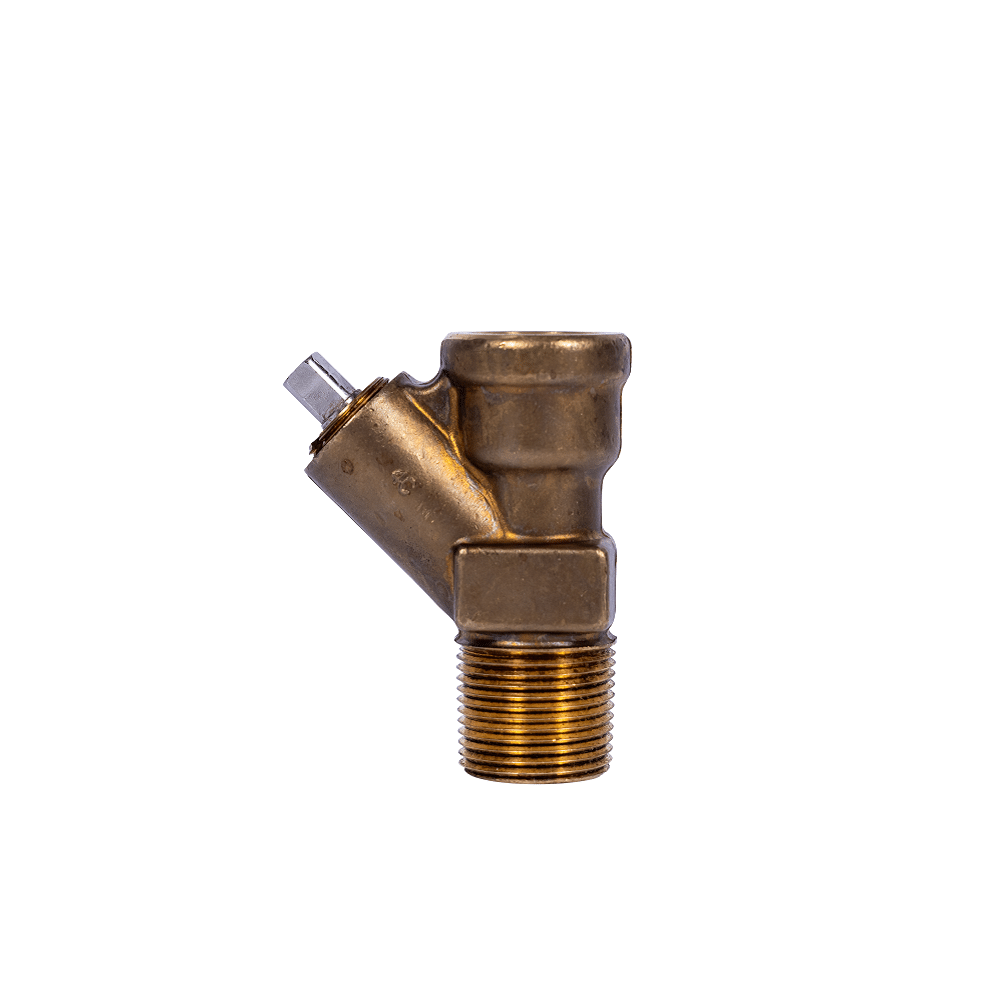

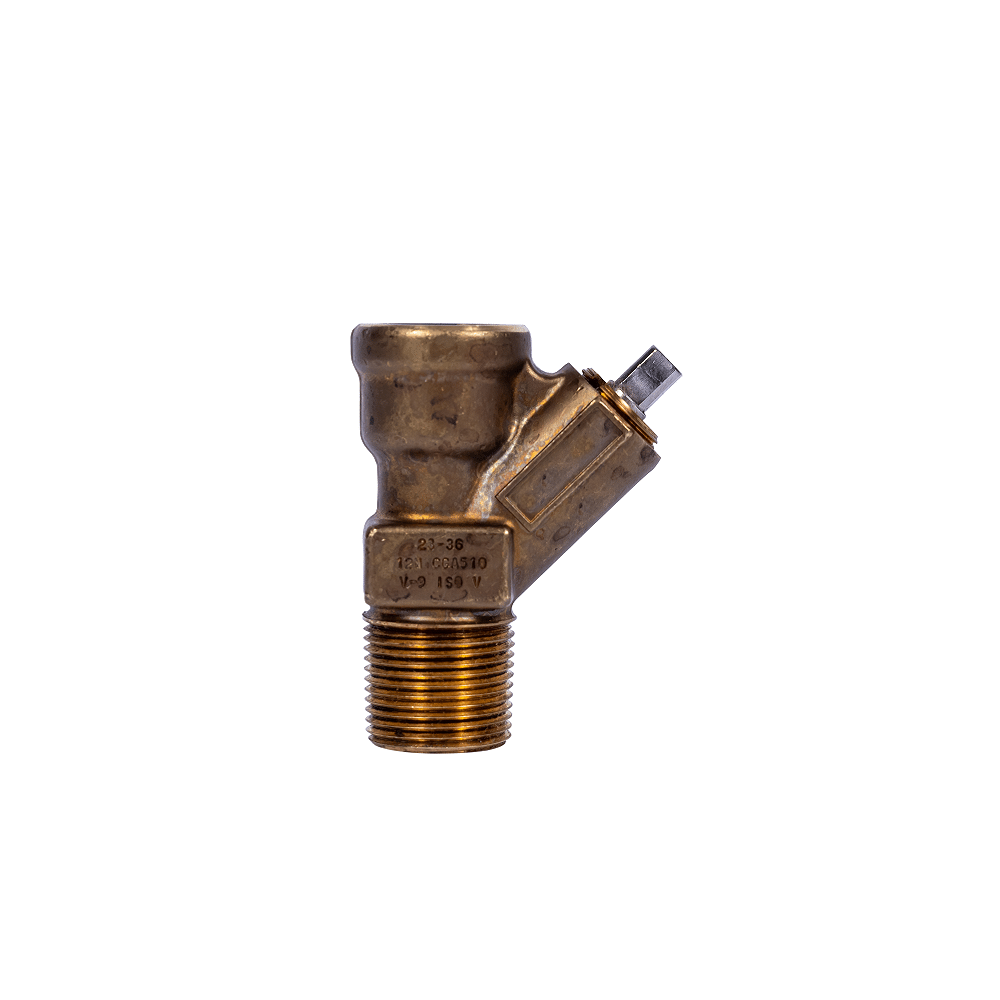

Sherwood CGA 510 Acetylene Valve 3/4″-14 NGT Vertical Outlet Wrench Style

Designed for use with 390 cu ft. capacity (WB style) cylinders. Enables easy access and operation within the cylinder collar.

Sherwood acetylene valves are designed for precise and reliable flow control, making them a top choice across various gas and liquid industries. Whether you’re working in welding, cutting, heat treatment, or chemical and polyethylene production, these valves offer the control you need to get the job done safely and efficiently.

Premium Construction

Automated assembly and testing processes ensure exceptional quality
100% helium leak tested
Heavy-duty forged brass body for durability and high pressure
Precisely machined internal components meet the most stringent international valve performance standards
Easy-to-read valve markings roll stamped on outlet neck
Soft seat design provides positive shut-off

Valve Features

Gas Service: Acetylene
CGA510 outlet
Inlet Thread Size: 3/4″-14 NGT
Outlet Thread Size: .825-14 NGO LH Int.
Operating Torque: 4-6 in.-lbs.
Packing: PTFE
Bonnet: Brass C36000
Needle: Stainless Steel
Adapter: Brass C36000
Body: Brass C37700

For safety, never open an acetylene cylinder valve more than 1.5 turns. Let the gas flow naturally and close it quickly if needed during an emergency.

Must be installed by a qualified cylinder technician due to torque specifications. Compressed gas cylinders and valves may be dangerous, please use caution and put safety first.

Have questions? Email us at [email protected].

Weight	2 lbs
Dimensions	6 × 5 × 5 in
Condition	New
Material	Brass
Gas Type	Acetylene
Inlet Size	3/4" NGT
Outlet Size	.825-14 NGO LH Int.
Brand	Sherwood
