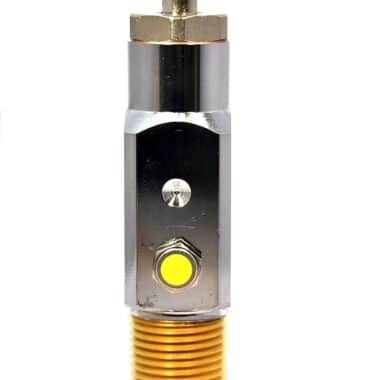

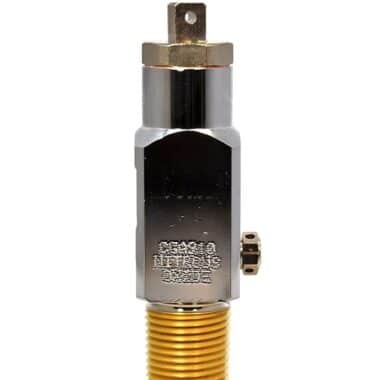

Sherwood Nitrous Oxide Post Valve – CGA910, 1/2″ NGT

This Sherwood nitrous oxide post valve is made from heavy-duty forged brass and is specifically designed for use with steel nitrous oxide gas cylinders. This nitrous oxide gas valve has a CGA910 valve outlet with a 1/2″ -14 NGT inlet and safety (burst disk).

Premium Construction

Inert PTFE packing provides leak-free stem seal, long cycle life and resistance to corrosion.
Secondary O-ring helps to provide a secure seal under vacuum purging and low-pressure operation.
Strong, durable body is made from extruded brass rod and coated with a protective chrome finish.
Chamber design protects threads and stem from damage.
Exceptional machining finishes for low-torque sealing and long packing life.
Durable lower plug is made of tough naval brass and coated with PTFE for lubricity.
Pressure Relief Device is an integrated assembly to ensure proper assembly and to resist tampering.
Designed for use with all yokes made to CGA 860 drawing specifications.

Valve Features

Gas Service: Nitrous Oxide
CGA910 outlet
Inlet Thread Size: 1/2″ NGT
Safety CG-1
Maximum Working Pressure: 3360 PSI
Operating Temperature Range: -50° F to +149° F
Storage Temperature Range: -65° F to +155° F
Leak Rate Internal/External: 1×10-3 cc/sec.
Cv Flow Factor: Standard: .102
Minimum Cycle Life: 5000 Cycles
Opening Torque: 8–10 in.-lbs.
Closing Torque: 8–10 in.-lbs.
Operating Torque: 10–30 in.-lbs.
Bonnet Torque: 25–30 ft.-lbs.
PRD Torque: 50–65 in.-lbs.
Pin Indexing Hole Numbers: Pins #3 and #5
Automated assembly and testing processes ensure exceptional quality

Must be installed by a qualified cylinder technician due to torque specifications. Compressed gas cylinders and valves are dangerous. Please use caution.

Have questions? Email us at [email protected].

Weight	2 lbs
Dimensions	4 × 2 × 3 in
Condition	New
Gas Type	Nitrous Oxide
Service Pressure	3360 PSI
Brand	Sherwood
