Nitrogen Valve – CGA580 RPV – 3/4″ NGT 7 Oversize – Rotarex
$21.30
CGA580 Valve – 3/4″ NGT 7 Oversize, 4000 PSI Safety Burst Pressure. For Nitrogen Gas Use – Residual Pressure Relief
Recently Viewed Products

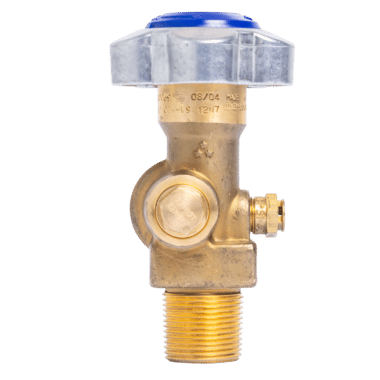

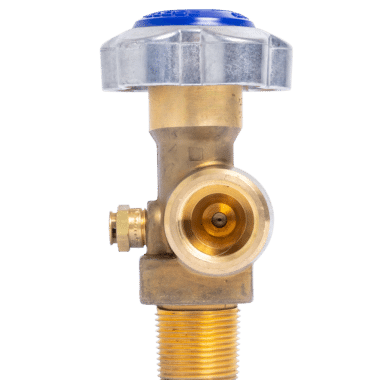

Rotarex Nitrogen Gas Valve – CGA580 RPV, 3/4″ NGT
This Rotarex nitrogen RPV Valve CGA580 3/4″ Oversize is made from heavy-duty forged brass. Common applications include welding and other industrial uses. This inert gas valve has a CGA580 RPV (Residual Pressure Valve) valve outlet with a 3/4″ NGT 7 Oversize inlet and safety (burst disk).
Premium Construction
- Prevents backflow of impurities and foreign substances
- Automated assembly and testing processes ensure exceptional quality
- 100% helium leak tested
- Durable forged brass body, precisely machined internal components and design elements meet the most stringent domestic and international valve performance standards
- Innovative design and quality construction offer protection of cylinder contents without the expense of a time-consuming purge-and-clean cycle
- Retains approximately 55 to 85 PSI pressure, maintaining the integrity of the cylinder contents against contaminants, even if the valve is left open
- Protects and extends life of cylinder by preventing ingress of moisture
- Pressure Relief Device (PRD) unitized plug design provides excellent flow characteristics
- Dynamic front piston seal design is not in direct contact with the flow passage during filling
- Inlet and outlet thread configurations are available for a broad spectrum of customer, country and code specifications
- Exclusive “webbed washer” design protects burst disc during handling and bulk shipment
- Inlets tapped (1/4″ NPT) for dip tube as required
Valve Features
- Gas Service: Nitrogen
- CGA580 outlet
- Inlet Thread Size: 3/4″ NGT 7 Oversize
- Outlet Thread Size: .965-14 NGO RH Int.
- Maximum Working Pressure: 4000
- Burst Pressure: 10000 PSI
- Operating Temperature Range: -50° F to +149° F
- Storage Temperature Range: -65° F to +155° F
- Minimum Cycle Life: 2000 Cycles
- Cv Flow Factor: Standard .26
- Closing Torque: 20-30 in.-lbs.
- Operating Torque: 10-20 in.-lbs.
- Bonnet Installation Torque: 50–60 ft.-lbs.
- Handwheel Nut Installation Torque: 25-45 ft.-lbs.
- PRD Installation Torque: 25-35 ft.-lbs.
- PRD Flow Capacity 60 cfm @ 100 PSI
Must be installed by a qualified cylinder technician due to torque specifications. Compressed gas cylinders and valves are dangerous. Please use caution.
Have questions? Email us at [email protected].
| Weight | 2 lbs |
|---|---|
| Dimensions | 4 × 2 × 3 in |
| Safety PSI | 4000 PSI |
