Name: CO2 Carbon Dioxide Valve CGA320 RPV 1.125" 12 UNF - Sherwood
SKU: SGV32051281125RPV
Availability: InStock

Description

Specifications

Reviews (0)

Shipping

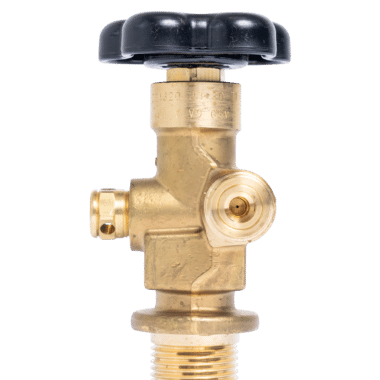

Sherwood CO2 Valve – CGA320 RPV, 1.125″ -12 UNF

This Sherwood CO2 Valve – CGA320 RPV 1.125″ -12 UNF is made from heavy-duty forged brass and is specifically designed for use with aluminum carbon dioxide cylinders. Common applications include beverage dispensing and welding. This CO2 valve has a CGA320 RPV valve outlet with a 1.125″ -12 UNF inlet and safety (burst disk).

An RPV valve protects cylinders from contamination by keeping a positive pressure inside the cylinder. Similar to a standard valve, but with a residual pressure unit that includes a spring, piston, and O-ring. Prevents back flow of contaminants and foreign substances and retains a small amount of gas inside the valve to maintain purity.
Used for compressed gases, such as CO2 in beverage cylinders.
Helps extend the life of the cylinder.

Premium Construction

Prevents backflow of impurities and foreign substances
Automated assembly and testing processes ensure exceptional quality
100% helium leak tested • Durable forged brass body, precisely machined internal components and design elements meet the most stringent domestic and international valve performance standards
Innovative design and quality construction offer protection of cylinder contents without the expense of a time-consuming purge-and-clean cycle
Retains approximately 55 to 85 PSI pressure, maintaining the integrity of the cylinder contents against contaminants, even if the valve is left open
Protects and extends life of cylinder by preventing ingress of moisture
Pressure Relief Device (PRD) unitized plug design provides excellent flow characteristics
Dynamic front piston seal design is not in direct contact with the flow passage during filling
Inlet and outlet thread configurations are available for a broad spectrum of customer, country and code specifications
Exclusive “webbed washer” design protects burst disc during handling and bulk shipment
Inlets tapped (1/4″ NPT) for dip tube as required

Valve Features

Gas Service: Carbon Dioxide
CGA320 RPV outlet
Inlet Thread Size: 1.125-12 UNF
Outlet Thread Size: .825-14 NGO RH Ext.
Maximum Working Pressure: 3000 PSI
Burst Pressure: 10000 PSI
Operating Temperature Range: -50° F to +149° F
Storage Temperature Range: -65° F to +155° F
Leak Rate Internal/External: 1×10-3 atm cc/sec.
Cv Flow Factor: Standard: .26
Minimum Cycle Life: 2000 Cycles
Closing Torque: 20–30 in.-lbs.
Operating Torque: 10–20 in.-lbs.
Bonnet Installation Torque: 50–60 ft.-lbs.
Handwheel Nut Installation Torque: 25-45 in. – lbs.
PRD Installation Torque: 25–35 in.-lbs.
PRD Flow Capacity: 60 cfm @ 100 PSI

Must be installed by a qualified cylinder technician due to torque specifications. Compressed gas cylinders and valves are dangerous. Please use caution.

Have questions? Email us at [email protected].

Weight	2 lbs
Dimensions	4 × 2 × 3 in
Material	Brass
Gas Type	CO2
Service Pressure	3000 PSI / 206 BAR
Brand	Sherwood
