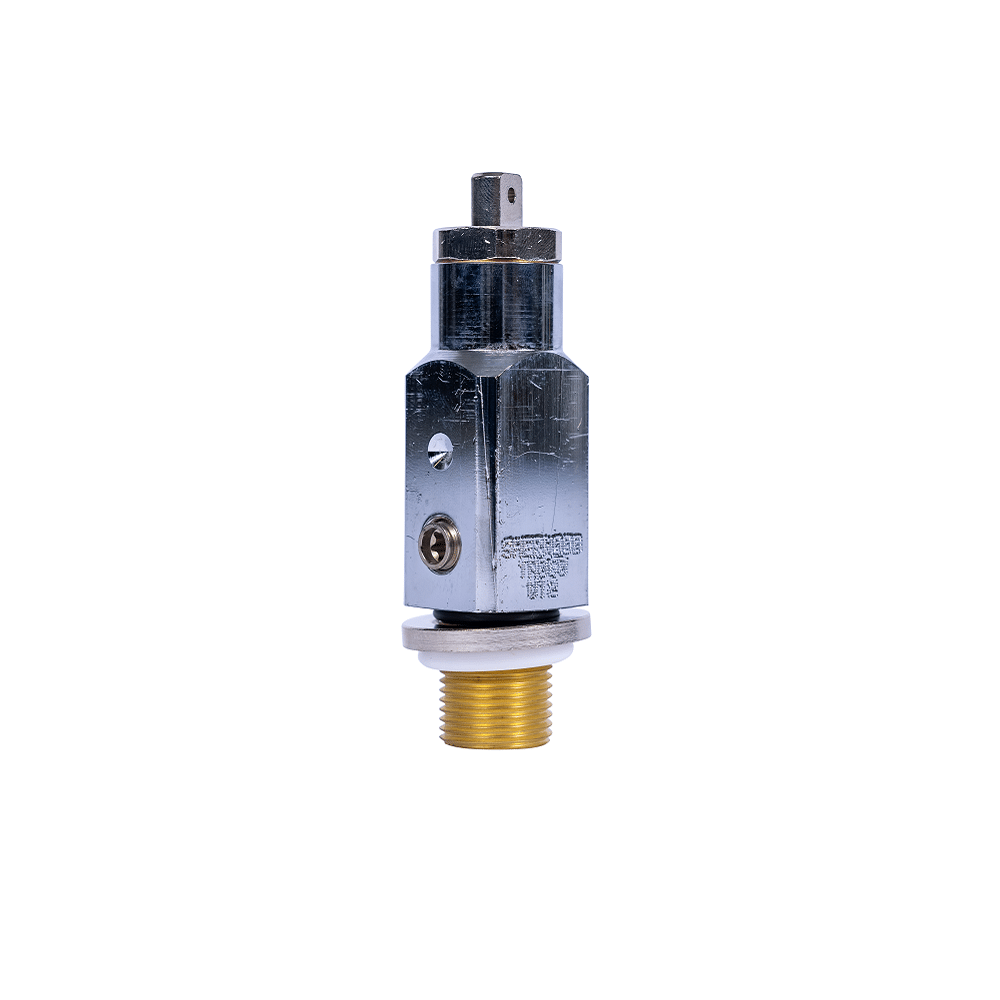

Sherwood Medical Oxygen Valve – CGA870, .750″ UNF

This Sherwood post medical oxygen valve delivers reliable, safe performance for aluminum medical oxygen cylinders. Crafted from heavy-duty forged brass, it offers exceptional durability and corrosion resistance for demanding medical environments. The valve features a CGA870 outlet and a .750″ UNF inlet with an integrated safety burst disk for added protection.

Designed with healthcare applications in mind, this valve is stamped for MRI use, ensuring compliance in medical facilities where MRI compatibility is required. Precision engineering and robust construction make it a dependable choice for hospitals, clinics, emergency services, and home oxygen therapy.

Premium Construction

Special construction process significantly reduces magnetic attraction
Meets all known tests for MRI-conditional components used in conjunction with a magnetic resonance imager for Level 3 Tesla requirements
Clearly identified for hospital settings
ASTM standard F 2503-05 marking
Inert PTFE packing provides leak-free stem seal and resistance to corrosion
Secondary O-ring helps to provide a secure seal under vacuum purging and low-pressure operation
Strong, durable body is made from extruded brass rod and coated with a protective chrome finish
Chamber design protects threads and stem from damage
Exceptional machining finishes for low-torque sealing and long packing life
Durable lower plug is made of tough naval brass and coated with PTFE for lubricity
Copper sealing gasket provides permanent, leak-resistant bonnet seal
Pressure Relief Device (PRD) is a single unit to ensure proper assembly and to resist tampering
For use with all yokes made to CGA 860 drawing specifications
Nominal stroke is 1.5 turns, full flow at 1⁄3 turn

Valve Features

Gas Service: Medical Oxygen
CGA870 outlet
Inlet Thread Size: .750-16 UNF-2A
Safety CG-4

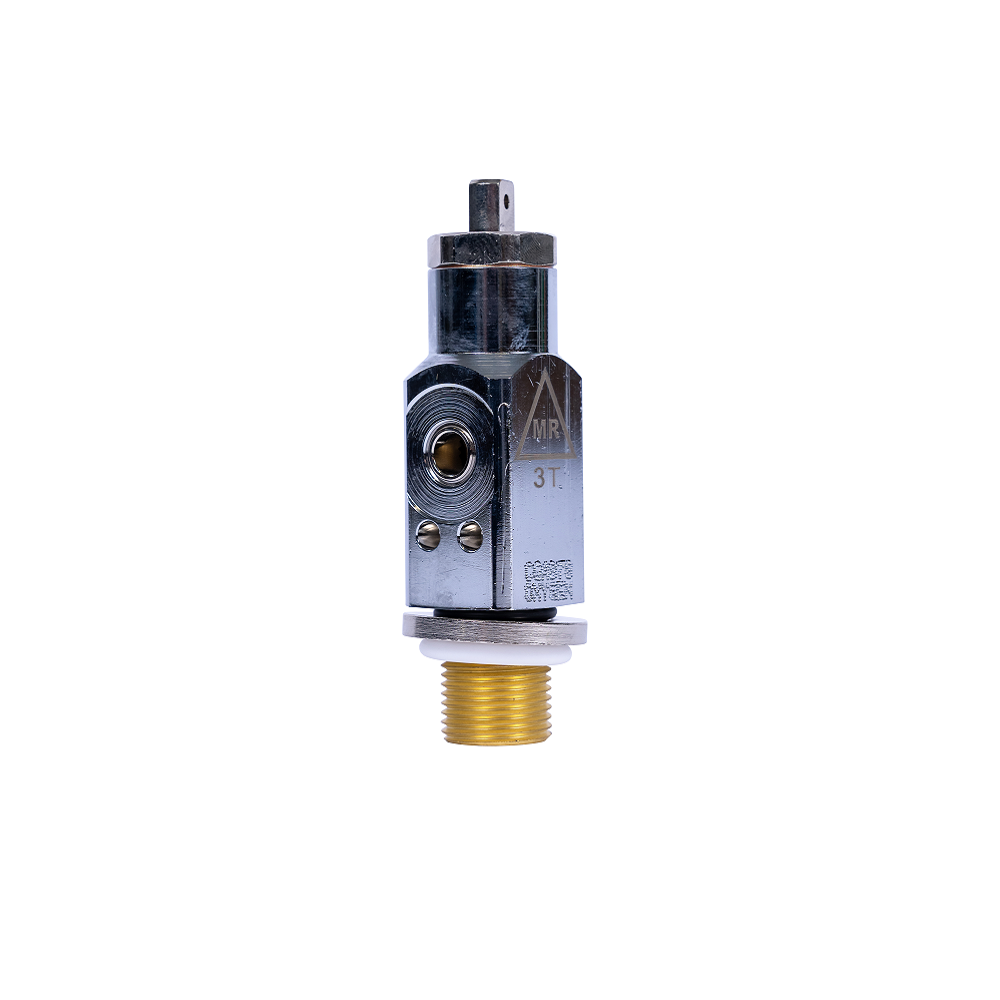

MRI Stamped
Maximum Working Pressure: 3360 PSI
Operating Temperature Range: -50° F to +149° F
Storage Temperature Range: -65° F to +155° F
Leak Rate Internal/External: 1×10-3 cc/sec.
Cv Flow Factor: Standard: .102
Minimum Cycle Life: 5000 Cycles
Opening Torque: 8–10 in.-lbs.
Closing Torque: 8–10 in.-lbs.
Operating Torque: 10–30 in.-lbs.
Bonnet Torque: 25–30 ft.-lbs.
PRD Torque: 50–65 in.-lbs.
Pin Indexing Hole Numbers: Pins #2 and #5
Automated assembly and testing processes ensure exceptional quality

Must be installed by a qualified cylinder technician due to torque specifications. Compressed gas cylinders and valves are dangerous. Please use caution.

Have questions? Email us at [email protected].

Weight	1.2 lbs
Dimensions	4 × 2 × 3 in
Condition	New
Gas Type	Medical Oxygen
Safety PSI	3360 PSI
Brand	Sherwood
