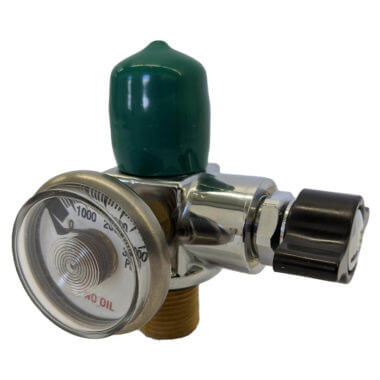

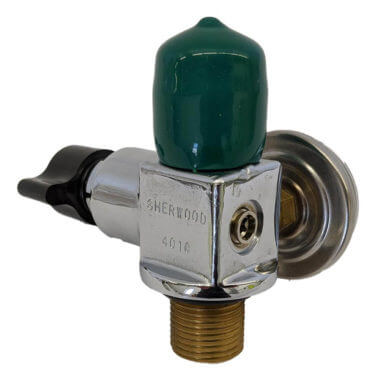

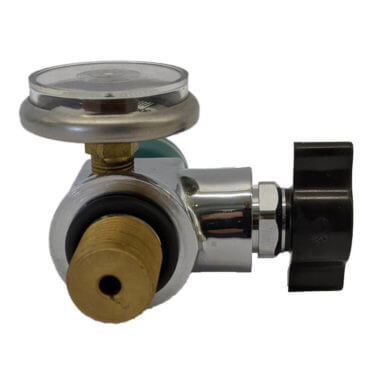

CGA540 Vertical Oxygen Outlet Valve with Gauge Port Chrome Plated
$75.60
CGA540 Vertical Outlet Valve with Gauge is chrome plated CGA540 Vertical Outlet Valve with 3000 PSI Gauge. 3/4″ UNF and 3360 PSI Safety Burst Pressure.
Sherwood Oxygen Valve – CGA540, Oxygen with Gauge Port and Handwheel
This Sherwood CGA540 Vertical Outlet Valve with Gauge is made from heavy-duty forged brass and is specifically designed for use with steel oxygen cylinders. Some common applications include welding and industrial use. This oxygen valve has a CGA540 valve outlet and safety (burst disk).
Premium Construction
- Automated assembly and testing processes ensure exceptional quality
- 100% helium leak tested
- Precisely machined internal components meet the most stringent international valve performance standards
- Compact design
- Chamber designed for easy operation
- Aluminum Silicon Bronze stem design for dependable service and long life
- Durable lower plug made of tough naval brass resists wear
- Lower plug is PTFE coated to add lubricity
- Internal bonnet gasket seal resists damage to chamber sealing area
- Compact molded Lexan polycarbonate handwheel is easy to operate
- Single unit, compact Pressure Relief Device incorporates 165° F fusible metal backing to resist premature rupture and provide maximum cylinder protection
- Chrome plated for corrosion resistance and cosmetic appeal
Valve Features
- Gas Service: Oxygen
- CGA540 outlet
- Inlet Thread Size: .750-16 UNF-2A
- Outlet Thread Size: .903-14 NGO RH Ext.
- Maximum Working Pressure: 3000PSI
- Operating Temperature Range: -50° F to +120° F
- Storage Temperature Range: -65° F to +155° F
- Minimum Cycle Life: 5000 Cycles
- Closing Torque: 5–7 in.-lbs.
- Operating Torque: 3–5 in.-lbs.
- Bonnet Installation Torque: 25–30 ft.-lbs.
- Stem Nut Installation Torque: Nut Flush with Top of Stem
- Includes gauge
The valve must be installed by a qualified cylinder technician due to torque specifications. Compressed gas cylinders and valves are dangerous. Please use caution.
Questions? Email us at [email protected].
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 5 × 5 in |
| Condition | New |
| Safety Burst Pressure | 3360 PSI |
