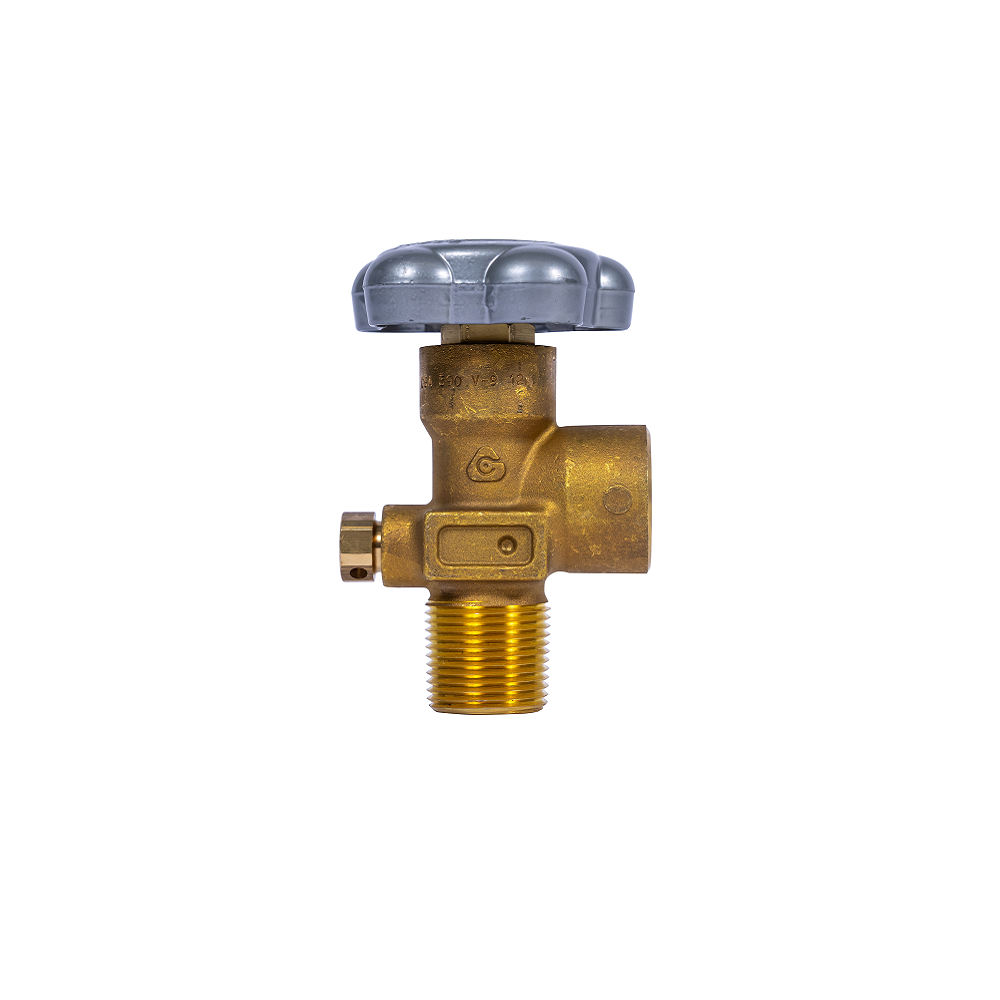

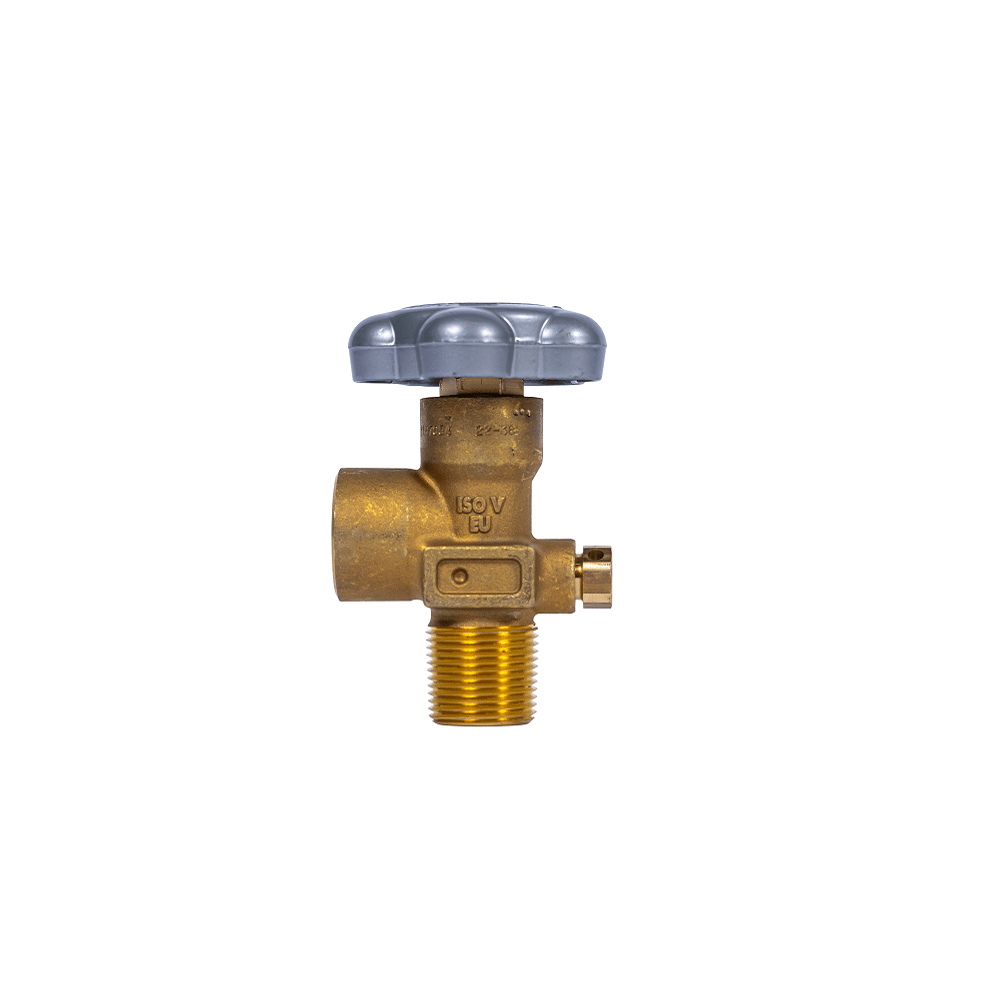

Cavagna Sulfur Hexafluoride Valve – CGA590, 3/4″ NGT

The Cavagna Sulfur Hexafluoride Valve delivers dependable, long-lasting performance for sulfur hexafluoride (SF6) gas in steel cylinders. Crafted from heavy-duty forged brass, this valve ensures durability and corrosion resistance in demanding industrial environments.

Its tapered 3/4″ NGT threads provide secure, leak-proof connections for safe gas handling. Equipped with a standard CGA590 valve outlet and a built-in safety burst disk, this valve complies with industry safety regulations by protecting against overpressure conditions.

Perfect for electrical utilities, manufacturing, and other SF6 applications, the Cavagna valve combines rugged construction with precise engineering to meet your critical industrial needs.

Premium Construction

Automated assembly and testing processes ensure exceptional quality
100% helium leak tested
Heavy-duty forged brass body for durability and high pressure
Precisely machined internal components meet the most stringent international valve performance standards
Pressure Relief Device (PRD) is a unitized plug design that provides excellent flow characteristics, ensures proper assembly and tamper resistance
Metal-to-metal seal below bonnet threads prevents pressure in the threads at top of valve body
Direct-drive stem design with optimized O-ring (GSV) or double O-ring (GSHV) seal reduces friction and operates at exceptionally low torque levels
Inlet and outlet thread configurations are available for a broad spectrum of customer, country and code specifications
Tapped for dip tube as required

Valve Features

Gas Service: Sulfur Hexafluoride
CGA590 outlet
Inlet Thread Size: 3/4″ NGT
Outlet Thread Size: .965-14 NGO RH Int.
Maximum Working Pressure: 3775 PSI Availability
Burst Pressure: 10000 PSI
Operating Temperature Range: -50° F to +149° F
Storage Temperature Range: -65° F to +155° F
Minimum Cycle Life: 2000 Cycles
Cv Flow Factor: Standard .690
Closing Torque: 20-30 in.-lbs.
Operating Torque: 10-20 in.-lbs.
Bonnet Installation Torque: 50–60 ft.-lbs.
Handwheel Nut Installation Torque: 25-45 ft.-lbs.
PRD Flow Capacity 60 cfm @ 100 PSI

Must be installed by a qualified cylinder technician due to torque specifications. Compressed gas cylinders and valves are dangerous. Please use caution.

Have questions? Email us at [email protected].

Weight	2 lbs
Dimensions	6 × 5 × 5 in
Condition	New
Material	Brass
Gas Type	Sulfur Hexafluoride
Brand	Cavagna
