Sulfur Hexafluoride Valve CGA590 3/4" NGT - Intermed

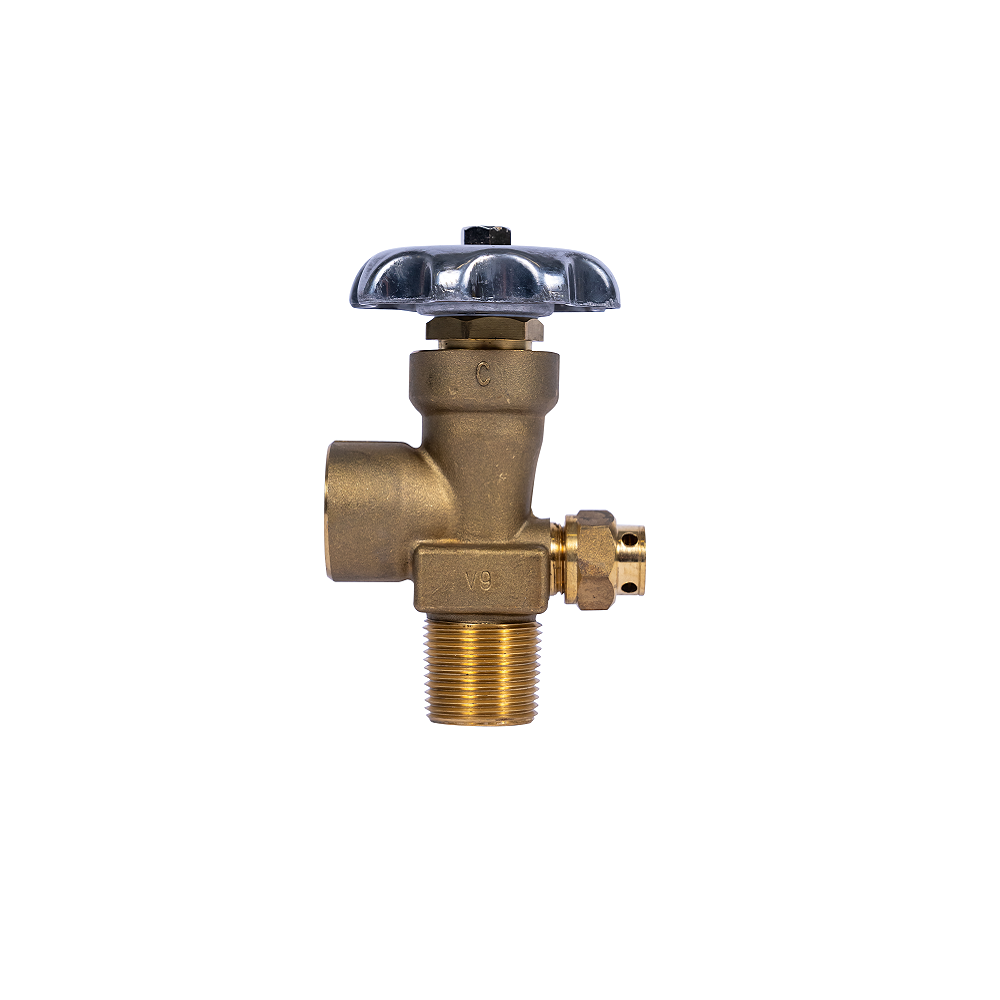

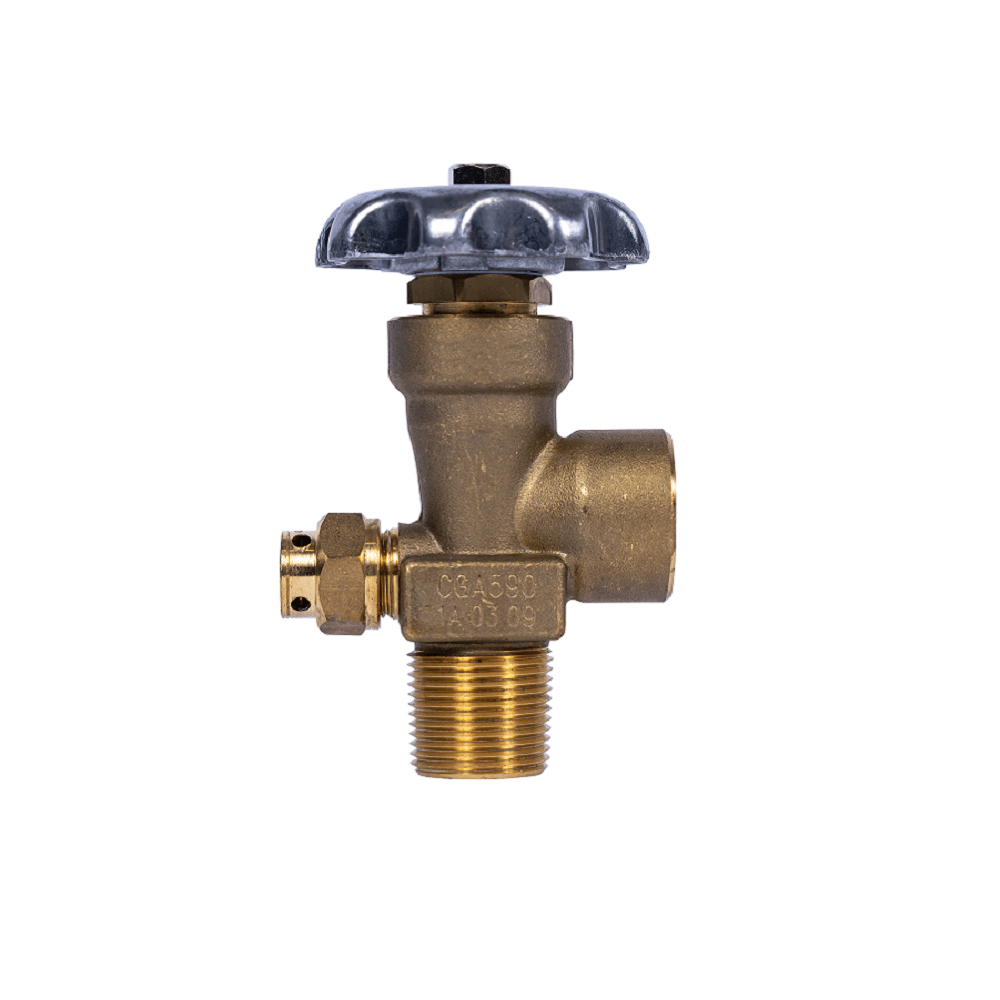

Intermed Sulfur Hexafluoride Valve – CGA590, 3/4″ NGT

The Intermed Sulfur Hexafluoride Valve is engineered from heavy-duty forged brass to provide reliable, long-lasting performance with sulfur hexafluoride (SF6) gas in steel cylinders. Designed with tapered 3/4″ NGT threads for secure, leak-resistant connections, this valve ensures safe handling in a variety of industrial applications.

Featuring a CGA590 valve outlet and a built-in safety burst disk, the valve meets industry safety standards to protect against overpressure situations. Its durable construction and precise engineering make it ideal for use in electrical utilities, manufacturing, and other SF6-related industrial processes.

Premium Construction

Automated assembly and testing processes ensure exceptional quality
100% helium leak tested
Heavy-duty forged brass body for durability and high pressure
Precisely machined internal components meet the most stringent international valve performance standards
Pressure Relief Device (PRD) is a unitized plug design that provides excellent flow characteristics, ensures proper assembly and tamper resistance
Metal-to-metal seal below bonnet threads prevents pressure in the threads at top of valve body
Direct-drive stem design with optimized O-ring (GSV) or double O-ring (GSHV) seal reduces friction and operates at exceptionally low torque levels
Inlet and outlet thread configurations are available for a broad spectrum of customer, country and code specifications
Tapped for dip tube as required

Valve Features

Gas Service: Sulfur Hexafluoride
CGA590 outlet
Inlet Thread Size: 3/4″ NGT
Outlet Thread Size: .965-14 NGO RH Int.
Maximum Working Pressure: 3360 and 3775 PSI Availability
Burst Pressure: 10000 PSI
Operating Temperature Range: -50° F to +149° F
Storage Temperature Range: -65° F to +155° F
Minimum Cycle Life: 2000 Cycles
Cv Flow Factor: Standard .690
Closing Torque: 20-30 in.-lbs.
Operating Torque: 10-20 in.-lbs.
Bonnet Installation Torque: 50–60 ft.-lbs.
Handwheel Nut Installation Torque: 25-45 ft.-lbs.
PRD Flow Capacity 60 cfm @ 100 PSI

Must be installed by a qualified cylinder technician due to torque specifications. Compressed gas cylinders and valves are dangerous. Please use caution.

Have questions? Email us at [email protected].

Weight	N/A
Dimensions	N/A
Condition	New
Material	Brass
Gas Type	Sulfur Hexafluoride
Brand	Intermed

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
